Horizontal Leaf Filter is a fully enclosed pressure-type solid-liquid separation equipment. With a horizontal tank design, the built-in filter leaf bundle can be hydraulically pulled out of the vessel entirely for inspection and maintenance.

Slurry is pumped into the tank. Under pressure, liquid permeates the filter medium while solid particles form filter cakes on the surface of filter leaves. It supports cake washing, air drying, and automatic vibration cake discharge for either dry cake or wet cake discharging. It is widely adopted for batch clarification of low-solid-content liquid.

Structure

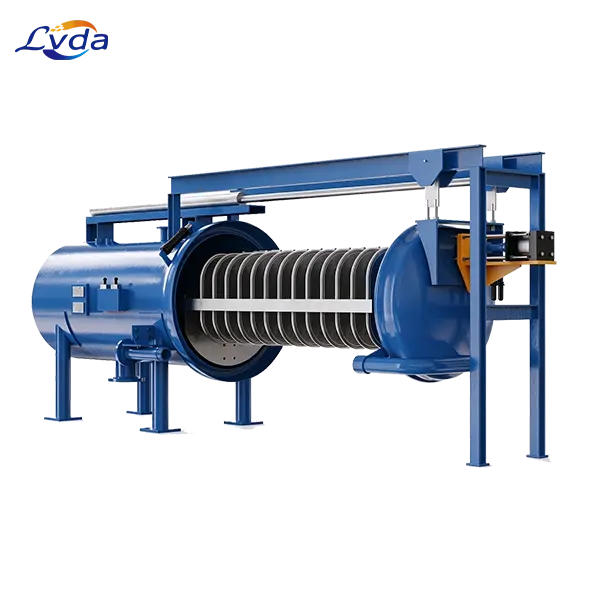

Horizontal pressure vessel: Carbon steel or stainless steel pressure-resistant cylinder with tight sealing.

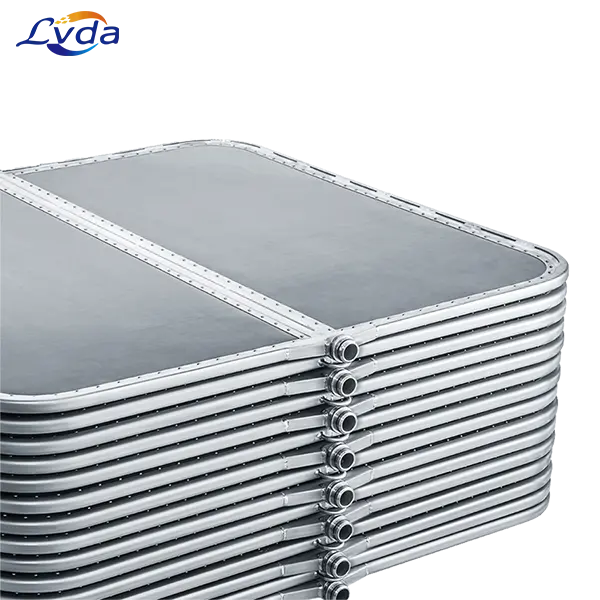

Filter leaf assembly: Multiple fan-shaped filter leaves with double-side filtration. Filter cloth or metal screen optional, SS304/SS316L available.

Hydraulic push-pull mechanism: Hydraulic power unit and rail frame to extract the whole filter leaf bundle.

Vibration slag discharge device: Vibration motor helps filter cake fall off automatically.

Piping & instruments: Inlet, filtrate outlet, vent port, pressure gauge and differential pressure monitoring ports.

Control system: Optional PLC automatic control for full-cycle operation.

Features

Fully sealed operation, no leakage, no volatile loss, suitable for toxic, odorous and easily oxidized materials.

Large filtration area with double-sided filtration, high throughput and large solids holding capacity.

Hydraulic core pulling design, convenient observation, cleaning and maintenance of filter leaves.

Two discharge modes available: dry cake discharge or wet cake discharge.

Optional automatic PLC control to cut labor input and shorten working cycles.

Compatible with filter aids such as diatomite and bleaching earth for decolorization & clarification.

Customizable materials including stainless steel, rubber lining, FDA food-grade option.

Dry material recovery: recovery of the cake and clarified filtrate.

Grain & Oil: Edible oil decolorization & dewaxing, sugar syrup,starch slurry filtration.

Fine Chemicals: Resin, dye, paint, catalyst suspension and various solvents.

Pharmaceutical: Clarification of liquid medicine and pharmaceutical intermediates.

Petrochemical: Lubricating oil, paraffin, diesel and molten sulfur filtration.

Others: Electrolyte and clarification of various low-solid slurries.
