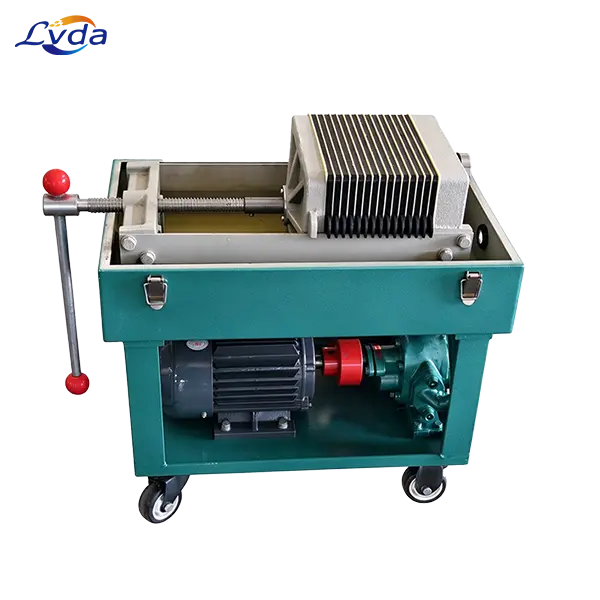

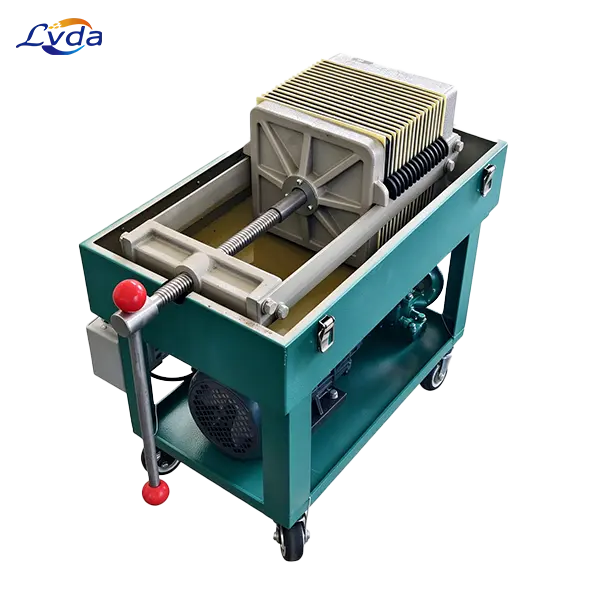

The plate-and-frame pressure oil filter is suitable for oil workshops and small-to-medium-sized edible oil plants. It filters crude pressed oils—such as peanut, rapeseed, soybean, sesame, and camellia oils—removing oil residue, suspended impurities, and trace moisture to enhance oil clarity.
Food-grade plate frame pressure oil filter is suitable for oil mills and small & medium edible oil plants. It filters pressed crude oil such as peanut oil, rapeseed oil, soybean oil, sesame oil and camellia oil to remove oil residues, suspended impurities and trace moisture, improving oil clarity. Oil contact parts adopt 304 stainless steel or food-grade PP plates, complying with food hygiene standards.
Product Features
✔ Food-grade material, easy to clean and sanitize, no harmful substance precipitation
✔ Adjustable filtration precision, works for hot & cold oil; directly filters hot pressed crude oil
✔ Clear outlet oil, reduces oil loss and extends oil shelf life
✔ Simple structure, easy disassembly, low consumable cost, high cost performance
✔ Overpressure protection for safe operation
Technical Parameters
| Model | LY-30 | LY-50 | LY-100 | LY-125 | LY-150 | LY-160 | LY-200 | LY-300 |
|---|---|---|---|---|---|---|---|---|
| Oil Filtration Capacity (L/min) | 30 | 50 | 100 | 125 | 150 | 160 | 200 | 300 |
| Working Pressure (MPa) | 0~0.5 | 0~0.5 | 0~0.5 | 0~0.5 | 0~0.5 | 0~0.5 | 0~0.5 | 0~0.5 |
| Filtration Area (㎡) | 0.38 | 0.52 | 1.57 | 1.88 | 2.35 | 2.51 | 2.67 | 4.08 |
| Plate & Frame Size (mm) | 180×180 | 180×180 | 280×280 | 280×280 | 280×280 | 280×280 | 280×280 | 280×280 |
| Compression Method | Manual Screw Compression | Manual Screw Compression | Manual Screw Compression | Manual Screw Compression | Manual Screw Compression | Manual Screw Compression | Manual Screw Compression | Manual Screw Compression |
| Quantity of Filter Frames | 11 | 13 | 10 | 12 | 14 | 15 | 16 | 26 |
| Quantity of Filter Plates | 12 | 14 | 11 | 13 | 15 | 16 | 17 | 27 |
| Flow Rate (L/min) | ＞30 | ＞50 | ＞100 | ＞125 | ＞150 | ＞160 | ＞200 | ＞300 |
| Safety Pressure (MPa) | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
| Inlet Diameter | G1" | G1" | G1.2" | G1.2" | G1.5" | G1.5" | G1.5" | G2" |
| Outlet Diameter | G1" | G1" | G1.2" | G1.2" | G1.5" | G1.5" | G1.5" | G2" |
| Overall Dimension - Length (mm) | 800 | 800 | 820 | 820 | 900 | 900 | 1150 | 1200 |
| Overall Dimension - Width (mm) | 300 | 300 | 410 | 410 | 410 | 410 | 430 | 450 |
| Overall Dimension - Height (mm) | 650 | 650 | 850 | 850 | 850 | 850 | 920 | 950 |
| Power Supply | 380V 50HZ (Customizable) | 380V 50HZ (Customizable) | 380V 50HZ (Customizable) | 380V 50HZ (Customizable) | 380V 50HZ (Customizable) | 380V 50HZ (Customizable) | 380V 50HZ (Customizable) | 380V 50HZ (Customizable) |
| Weight (kg) | 150 | 185 | 280 | 295 | 320 | 330 | 320 | 350 |
