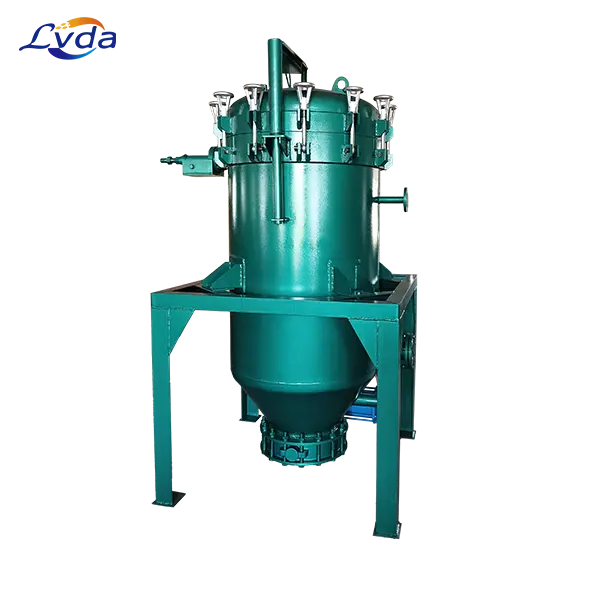

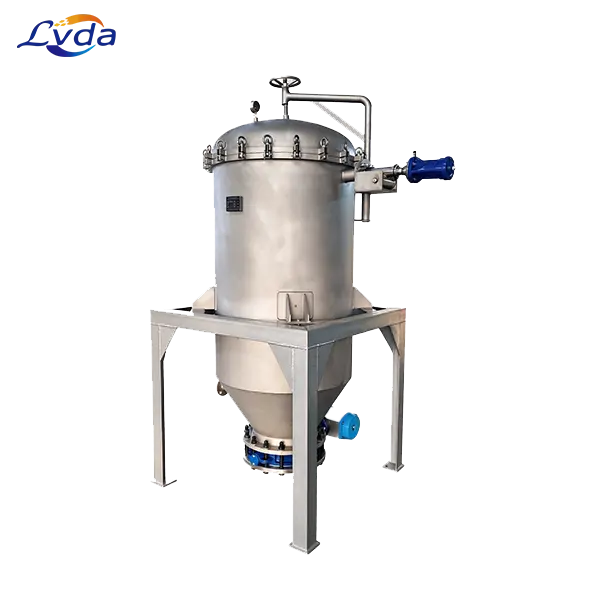

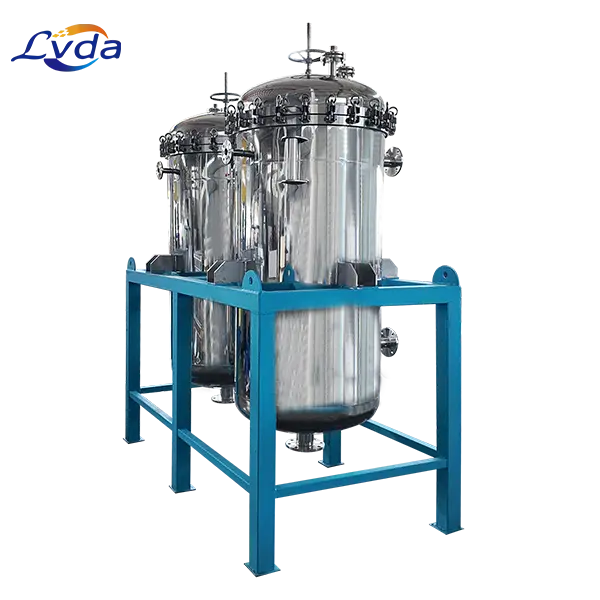

Vertical Leaf Filter

The vertical leaf filter—also known as an enclosed leaf filter or vibrating-discharge leaf filter—is a pressurized, enclosed solid-liquid separation device. It features multiple sets of stainless steel filter leaves installed vertically within the tank and utilizes pressure to clarify, decolorize, and remove impurities from liquids; the most common configuration employs a pneumatic vibration system for automatic discharge of the filter cake.

Specifications

Filtration area :4～80 ㎡, non-standard customization available
Tank diameter :Φ550～1600 mm
Filtration accuracy :0.3μm～200μm
Main material :Q235 carbon steel / 304 stainless steel / 316L stainless steel
Slag discharge caliber :DN300~DN700
Operation mode :manual / PLC automatic control

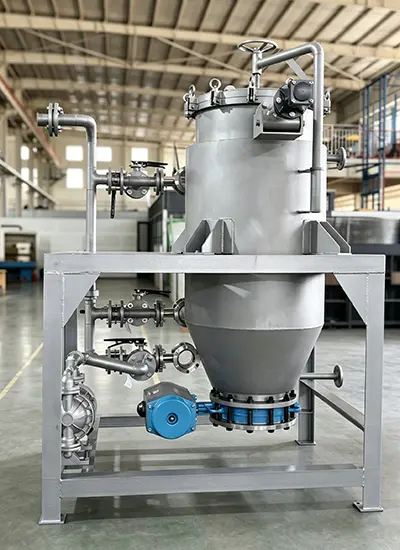

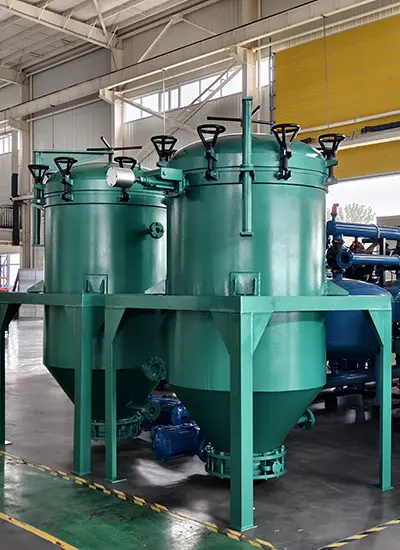

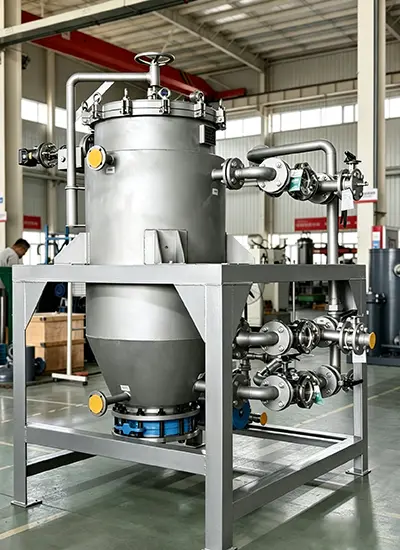

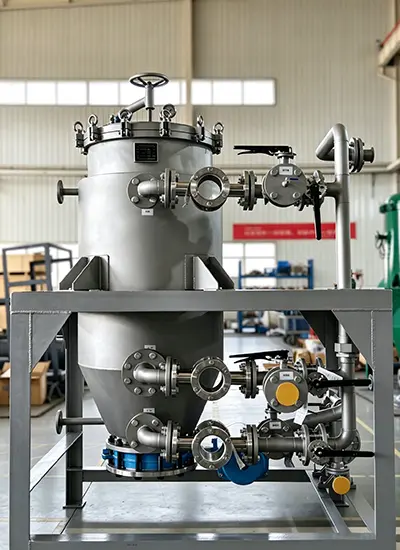

Product Details

Vertical leaf filter, also known as closed leaf filter or vibration slag-discharging leaf filter, is a pressurized closed solid-liquid separation equipment. Multiple sets of stainless steel filter leaves are vertically installed inside the tank. It completes liquid clarification, decolorization and impurity removal under pressure. The mainstream type adopts pneumatic vibration for automatic slag discharge, which is widely used to replace plate and frame filter presses.

Product Features

Fully closed operation: no volatilization or dust, meets VOC environmental protection requirements, suitable for solvents, toxic and odorous materials

Automatic vibration slag discharge, no manual tank opening for cleaning, low labor intensity and automatic operation available

Stainless steel screen filter leaves, no disposable filter cloth or filter paper; screen service life 3～5 years, low consumable cost

Large filtration area with small footprint; vertical structure saves space

Low liquid content in filter cake; high material recovery rate after compressed air drying

Optional materials; sanitary mirror polished version meets GMP requirements for food and pharmaceutical industries

Specifications Table

Model	Filtering area(m²)	Cylinder diameter(mm)	Inlet	Outlet	Overflow port	Slag outlet(mm)	Height(mm)	Weight(kg)
LDYP-4	4	550	DN50	DN80	DN40	300	2,010	600
LDYP-8	8	700	DN50	DN80	DN40	400	2,425	800
LDYP-10	10	800	DN50	DN80	DN40	400	2,630	900
LDYP-15	15	900	DN50	DN80	DN40	400	2,650	1,100
LDYP-20	20	1,100	DN50	DN80	DN40	400	3,000	1,500
LDYP-30	30	1,200	DN50	DN80	DN40	500	3,050	1,750
LDYP-40	40	1,300	DN65	DN80	DN50	500	3,280	2,100
LDYP-50	50	1,400	DN65	DN80	DN50	600	3,450	3,000
LDYP-60	60	1,500	DN65	DN80	DN50	600	3,630	3,100
LDYP-80	80	1,600	DN65	DN80	DN50	700	3,860	3,600
