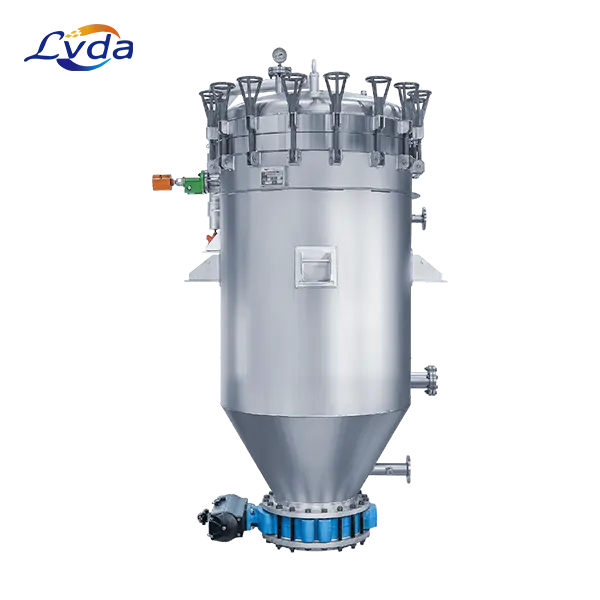

The Bleaching Earth Decolorization Filter is specialized solid-liquid separation equipment designed for use after the bleaching earth decolorization process. It replaces traditional plate-and-frame filter presses in many applications; the process involves first using activated bleaching earth in a decolorization tank to adsorb pigments and gums from the liquid, followed by using this machine to filter and separate the bleaching earth powder from the liquid.

Working Principle

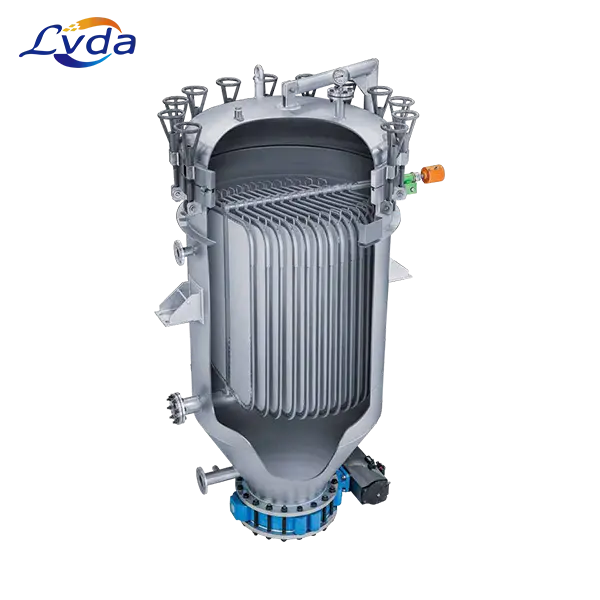

A pump feeds the mixture of liquid and bleaching earth into a sealed tank, forcing the liquid under pressure through vertically mounted stainless steel filter leaves;

Bleaching earth powder is trapped on the surface of the filter leaves, forming a filter cake, while the clarified liquid passes through the mesh into the interior of the leaves and flows out through the discharge port;

As the filter cake thickens, the internal pressure rises; feeding stops once the preset pressure is reached;

Compressed air is introduced to force residual liquid from the cake back into the decolorization tank and to dry the filter cake;

The bottom butterfly valve opens and the vibration motor activates, shaking off the bleaching earth residue, which is then discharged from the conical bottom, completing the cycle.

Advantages

No filter cloth consumables: Stainless steel filter leaves allow for long-term use, significantly reducing consumable costs;

Fully enclosed filtration: No evaporation or dust emissions, minimal material loss, and reduced risk of oil oxidation;

Automatic vibration-based residue discharge: Low manual labor intensity and lower oil content in the discharged residue;

Clear filtrate: Effectively captures fine bleaching earth particles, preventing "soil leakage" (carry-over);

Compact footprint: Operable by a single person; customizable with a thermal insulation jacket (for high-temperature oil products).

Cooking oil

lubricating oil

Waste engine oil

Resin

Sugar solution

Chemical process fluid
